Morley-IAS repeater panels show the fire alarm system status at a second location such as a guard room, reception or plant room: the ZXRA active repeater, the passive repeater and the MA-LCD7 repeater for MAX panels.
Morley fire alarm repeater panels
A repeater panel shows the status of the main fire alarm panel at a second location, so the security team does not have to walk to the panel to see what has happened. Morley-IAS makes three types, listed here as options.
Which repeater do you need?

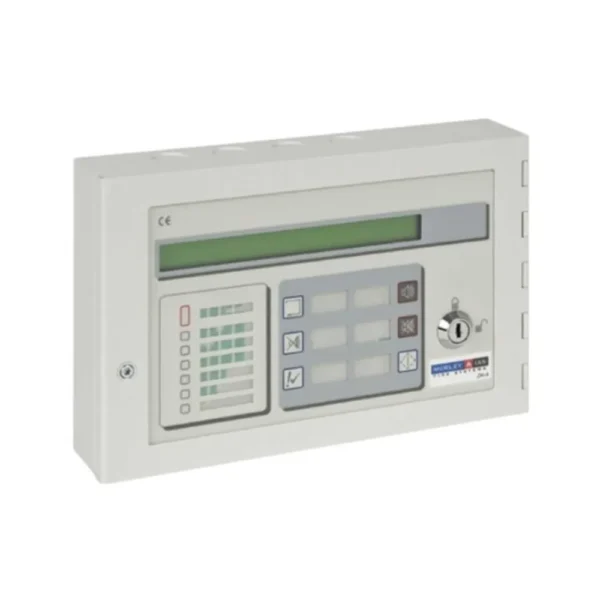

Active repeater ZXRA (part 709-601-001): shows the panel status on an 80-character LCD with 7 status LEDs, and lets authorised staff control the system. A key-operated “Access Enable” switch protects the buttons for reset, mute, accept, sound alarms and silence.
Passive repeater: the same LCD and LED status display, but indication only, with no controls. Good where people only need to see alarms.
MAX repeater MA-LCD7: for Morley MAX panels, with a 7 inch colour touch screen. It can work as a repeater or as a zonal mimic of the network.
The ZXRA and passive repeaters work with Morley-IAS intelligent multi-protocol panels such as the ZXSe range. Tell us your panel model and we will confirm the match.
Buy Morley repeater panels for your project
Share your drawing, device list or BOQ with the Get a quote button or on WhatsApp and we will send one quote for the panel, devices and accessories, with GST invoice and Pan-India delivery. Need help sizing the system? Ask us on WhatsApp or through the contact page.
What is the difference between an active and a passive repeater?
Both show the panel status. An active repeater also has controls such as reset, mute and silence behind a key switch; a passive repeater only shows indications.
Which repeater goes with a MAX panel?
The MA-LCD7, which has a 7 inch touch screen and can also be set up as a zonal mimic.
Are all prices on this page final?
No. Some repeater prices are indicative, based on current market listings. The final price is shared with your quote.
